基于迭代单元的除法器
迭代单元
数字信号处理中,有大量的算法是基于迭代算法,即下一次的运算需要上一次运算的结果,将运算部分固化为迭代单元可以将数据处理和流程控制区分,更容易做出时序和面积优化更好的硬件描述,这次将基于迭代单元构造恢复余数和不恢复余数除法器
恢复余数除法器

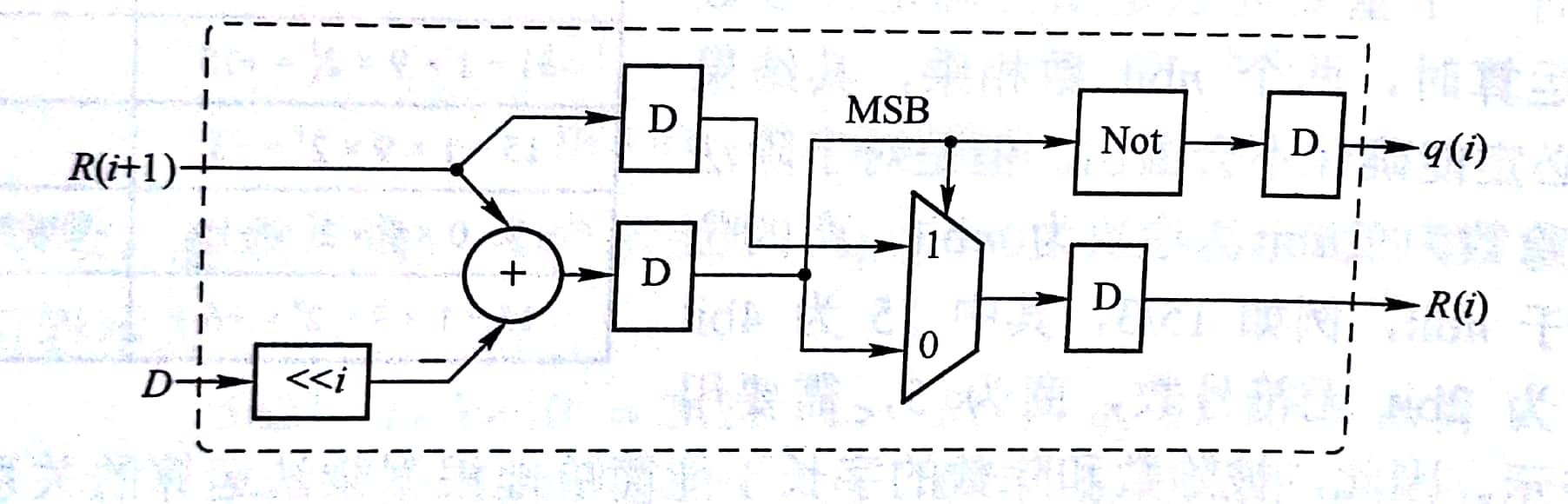

迭代单元
算法
- 将除数移位i位
- 判断位移后的除数与余数大小
- 若位移除数大于余数,则余数输出当前余数,结果输出0;否则输出余数减位移除数,结果输出1
RTL代码
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31
| module restore_cell #( parameter WIDTH = 4, parameter STEP = 1 )( input clk, input rst_n,
input [WIDTH * 3 - 1:0]remainder_din, input [WIDTH - 1:0]divisor,
output reg [WIDTH * 3 - 1:0]remainder_dout, output reg quotient );
wire [WIDTH * 3:0]divisor_exd = '{divisor}; wire [WIDTH * 3:0]sub = {1'b0,remainder_din} - (divisor_exd << STEP);
always @ (posedge clk or negedge rst_n) begin if(~rst_n) begin {remainder_dout,quotient} <= 'b0; end else begin if(sub[WIDTH * 3] == 1'b0) begin remainder_dout = sub; end else begin remainder_dout = remainder_din; end quotient = ~(sub[3 * WIDTH]); end end
endmodule
|
顶层模块
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42
| module restore_cell_divider #( parameter WIDTH = 4 )( input clk, input rst_n,
input [2 * WIDTH - 1:0]dividend, input [WIDTH - 1:0]divisor,
output [2 * WIDTH - 1:0]dout, output [WIDTH - 1:0]remainder );
genvar i; generate for (i = 2 * WIDTH - 1; i >= 0; i = i - 1) begin:restore wire [3 * WIDTH - 1:0]last_remaider; wire [3 * WIDTH - 1:0]this_remaider; if(i == 2 * WIDTH - 1) begin assign last_remaider = '{dividend}; end else begin assign last_remaider = restore[i + 1].this_remaider; end restore_cell #( .WIDTH(WIDTH), .STEP(i) ) u_restore_cell ( .clk(clk), .rst_n(rst_n),
.remainder_din(last_remaider), .divisor(divisor),
.remainder_dout(this_remaider), .quotient(dout[i]) ); end endgenerate
assign remainder = restore[0].this_remaider[WIDTH - 1:0];
endmodule
|
不恢复余数除法器

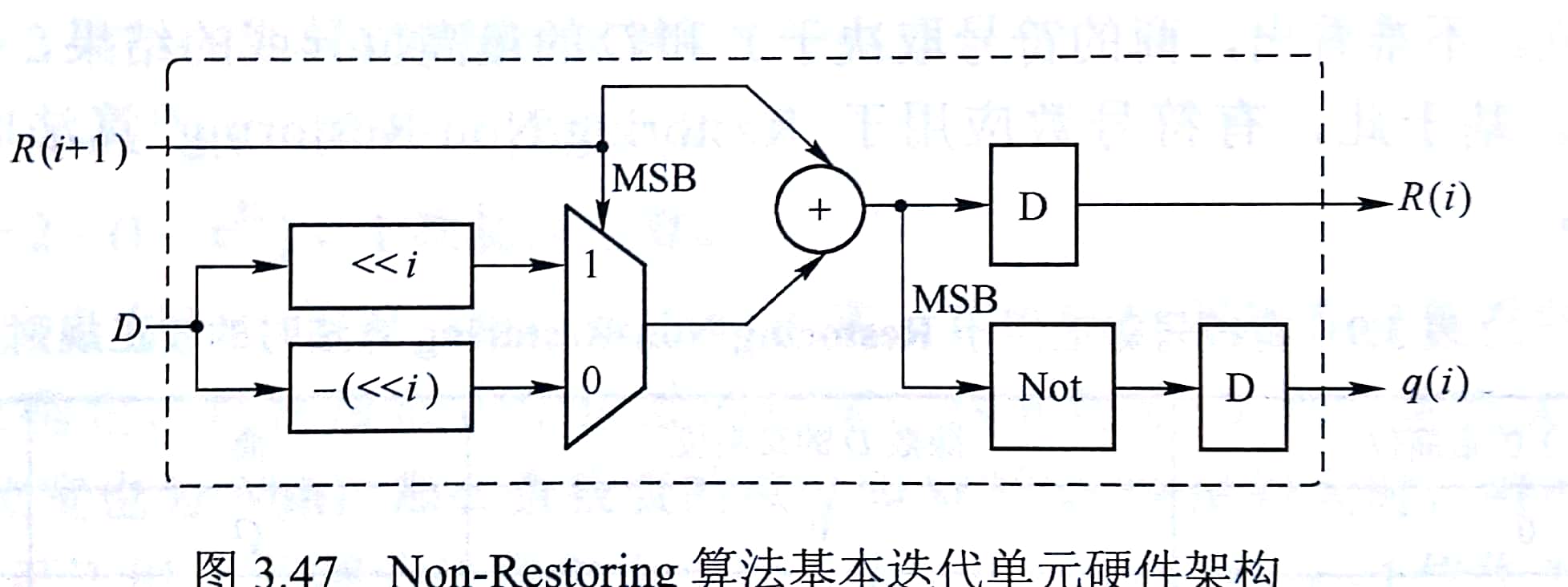

迭代单元
算法
- 将除数移位i位
- 若余数大于0,余数输出余数减移位除数;否则余数输出余数加移位除数。结果输出余数符号位取反
RTL代码
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34
| module norestore_cell #( parameter WIDTH = 4, parameter STEP = 1 )( input clk, input rst_n,
input [WIDTH * 3:0]remainder_din, input [WIDTH - 1:0]divisor,
output reg [WIDTH * 3:0]remainder_dout, output reg quotient );
wire [WIDTH * 3:0]divisor_exd = '{divisor}; wire [WIDTH * 3:0]divisor_move = divisor_exd << STEP; wire [WIDTH * 3:0]sub = remainder_din - divisor_move; wire [WIDTH * 3:0]add = remainder_din + divisor_move;
always @ (posedge clk or negedge rst_n) begin if(~rst_n) begin {remainder_dout,quotient} <= 'b0; end else begin if(remainder_din[3 * WIDTH] == 'b0) begin remainder_dout = sub; quotient = ~(sub[3 * WIDTH]); end else begin remainder_dout = add; quotient = ~(add[3 * WIDTH]); end end end
endmodule
|
顶层模块
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49
| module norestore_cell_divider #( parameter WIDTH = 4 )( input clk, input rst_n,
input [2 * WIDTH - 1:0]dividend, input [WIDTH - 1:0]divisor,
output [2 * WIDTH - 1:0]dout, output reg [WIDTH - 1:0]remainder );
genvar i; generate for (i = 2 * WIDTH - 1; i >= 0; i = i - 1) begin:restore wire [3 * WIDTH:0]last_remaider; wire [3 * WIDTH:0]this_remaider; if(i == 2 * WIDTH - 1) begin assign last_remaider = '{dividend}; end else begin assign last_remaider = restore[i + 1].this_remaider; end norestore_cell #( .WIDTH(WIDTH), .STEP(i) ) u_restore_cell ( .clk(clk), .rst_n(rst_n),
.remainder_din(last_remaider), .divisor(divisor),
.remainder_dout(this_remaider), .quotient(dout[i]) ); end endgenerate
wire [3 * WIDTH:0]remainder_final = restore[0].this_remaider; always @ (*) begin if(remainder_final[3 * WIDTH] == 1'b0) begin remainder = remainder_final[WIDTH - 1:0]; end else begin remainder = remainder_final[WIDTH - 1:0] + divisor; end end
endmodule
|
需要注意的是,不恢复余数除法器最后需要调整余数为正
