导入可能用到的Python库 1 2 3 4 import pandas as pdimport matplotlib.pyplot as pltimport numpy as npimport re
目标
学习机器学习算法——线性分类器
使用良性/恶性乳腺癌肿瘤数据集进行预测
理论学习 线性分类器 特征与分类结果存在线性关系的模型为线性分类器,模型通过累积特征和对应权值的方式决策,几何学上可看成一个n维空间中的超平面,学习的过程就是不断调整超平面的位置与倾斜程度,使该超平面可以最完美的将属于不同类别的特征点区分开,公式为:

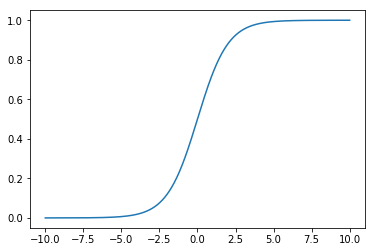

logistic 函数 线性分类器输出的是一个数,我们希望这个数在区间[0,1]之间,需要一个映射关系,这个映射关系就是logistic函数下面使用numpy和matplot绘制该函数的图像
1 2 3 4 x = np.linspace(start=-10 ,stop=10 ,num=1000 ) y = 1 / (1 + np.exp(-x)) plt.plot(x,y) plt.show()
将线性分类器公式带入logistics函数后,可得logistics回归模型
优化 完成了模型的构建之后,需要对算法进行优化已确定最优的W和b参数。这时,需要一个函数用于评价现有参数的质量,这个函数应该满足以下条件
连续可导(用于基于梯度的优化算法需要连续可导)
当预测结果越正确时,函数取值越大;预测结果越错误时,函数取值越小(反过来也可)
对于一个logistics的线性分类器,可以将输出看做取1值的概率,那么,该分类器可以视为一个条件概率$P(y|x)$,其中w与b是分布的参数,于是我们使用最大似然估计的方法确定这个评价函数(其中y是期望输出,即正确值)
是否连续可导:是
当y = 0时,$l(w,b) = 1 - f(w,b,x)$,预测值越接近0,取值越大;y=1时同理
于是我们只要对$l(w,b)$进行优化,通过梯度优化的方法找到最好的w,b参数即可
代码实现 导入数据——良性/恶性乳腺癌肿瘤数据集 数据下载 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 data_url = "https://archive.ics.uci.edu/ml/machine-learning-databases/breast-cancer-wisconsin/breast-cancer-wisconsin.data" data_label = """ 1. Sample code number 1id number 2. Clump Thickness 1 - 10 3. Uniformity of Cell Size 1 - 10 4. Uniformity of Cell Shape 1 - 10 5. Marginal Adhesion 1 - 10 6. Single Epithelial Cell Size 1 - 10 7. Bare Nuclei 1 - 10 8. Bland Chromatin 1 - 10 9. Normal Nucleoli 1 - 10 10. Mitoses 1 - 10 11. Class 2 for benign, 4 for malignant) """ data_label = [re.sub(r"\s+\d" ,"" ,x[2 :]) for x in re.findall(r"\. [\w\s]+\d" ,data_label)] print(data_label) data = pd.read_csv(data_url,names=data_label) print(data[:5 ],data.shape)
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 ['Sample code numberid number', 'Clump Thickness', 'Uniformity of Cell Size', 'Uniformity of Cell Shape', 'Marginal Adhesion', 'Single Epithelial Cell Size', 'Bare Nuclei', 'Bland Chromatin', 'Normal Nucleoli', 'Mitoses', 'Class'] Sample code numberid number Clump Thickness Uniformity of Cell Size \ 0 1000025 5 1 1 1002945 5 4 2 1015425 3 1 3 1016277 6 8 4 1017023 4 1 Uniformity of Cell Shape Marginal Adhesion Single Epithelial Cell Size \ 0 1 1 2 1 4 5 7 2 1 1 2 3 8 1 3 4 1 3 2 Bare Nuclei Bland Chromatin Normal Nucleoli Mitoses Class 0 1 3 1 1 2 1 10 3 2 1 2 2 2 3 1 1 2 3 4 3 7 1 2 4 1 3 1 1 2 (699, 11)
清洗数据(去除有缺失的数据) 1 2 3 data = data.replace(to_replace="?" ,value=np.nan) data = data.dropna(how='any' ) print(data.shape)
切分数据集(75%训练-25%测试) 1 2 3 4 from sklearn.cross_validation import train_test_splitx_train,x_test,y_train,y_test = train_test_split(data[data_label[:10 ]],data[data_label[10 ]],test_size=0.25 ,random_state=1 ) print(x_train.shape,x_test.shape) print(y_train.shape,y_test.shape)
1 2 (512, 10) (171, 10) (512,) (171,)
sklearn.cross_validation
中的train_test_split()
函数用于切分数据集,输入参数为:
数据
标签
test_size:0~1之间,表示测试集占总数据的比例
random_state:随机种子
数据标准化 1 2 3 4 from sklearn.preprocessing import StandardScalerss = StandardScaler() x_train_norm = ss.fit_transform(x_train) x_test_norm = ss.transform(x_test)
StandardScaler
的fit_transform()
函数,先计算均值与方差再标准化
StandardScaler
的transform()
函数,使用fit_transform()
计算出的均值方差标准化
模型建立与训练 模型建立 logistics分类器 1 2 from sklearn.linear_model import LogisticRegressionlr = LogisticRegression()
SGD分类器 1 2 from sklearn.linear_model import SGDClassifiersgdc = SGDClassifier()
1 2 c:\users\qiank\appdata\local\programs\python\python35\lib\site-packages\sklearn\linear_model\stochastic_gradient.py:84: FutureWarning: max_iter and tol parameters have been added in <class 'sklearn.linear_model.stochastic_gradient.SGDClassifier'> in 0.19. If both are left unset, they default to max_iter=5 and tol=None. If tol is not None, max_iter defaults to max_iter=1000. From 0.21, default max_iter will be 1000, and default tol will be 1e-3. "and default tol will be 1e-3." % type(self), FutureWarning)
训练模型 logistics分类器 1 lr.fit(x_train_norm,y_train)
1 2 3 4 LogisticRegression(C=1.0, class_weight=None, dual=False, fit_intercept=True, intercept_scaling=1, max_iter=100, multi_class='ovr', n_jobs=1, penalty='l2', random_state=None, solver='liblinear', tol=0.0001, verbose=0, warm_start=False)
SGD分类器 1 sgdc.fit(x_train_norm,y_train)
1 2 3 4 5 SGDClassifier(alpha=0.0001, average=False, class_weight=None, epsilon=0.1, eta0=0.0, fit_intercept=True, l1_ratio=0.15, learning_rate='optimal', loss='hinge', max_iter=5, n_iter=None, n_jobs=1, penalty='l2', power_t=0.5, random_state=None, shuffle=True, tol=None, verbose=0, warm_start=False)
模型测试 1 from sklearn.metrics import
logistics分类器 1 2 3 print(lr.score(x_test_norm,y_test)) y_result = lr.predict(x_test_norm) print(classification_report(y_test,y_result,target_names=['Benign' ,'Malignant' ]))
1 2 3 4 5 6 7 0.988304093567 precision recall f1-score support Benign 0.98 1.00 0.99 111 Malignant 1.00 0.97 0.98 60 avg / total 0.99 0.99 0.99 171
SGD分类器 1 2 3 print(sgdc.score(x_test_norm,y_test)) y_result = sgdc.predict(x_test_norm) print(classification_report(y_test,y_result,target_names=['Benign' ,'Malignant' ]))
1 2 3 4 5 6 7 0.970760233918 precision recall f1-score support Benign 0.96 1.00 0.98 111 Malignant 1.00 0.92 0.96 60 avg / total 0.97 0.97 0.97 171
classification_report()
用于测试准确率,精确率和召回率
.score()
用于评估本模型的准确率
